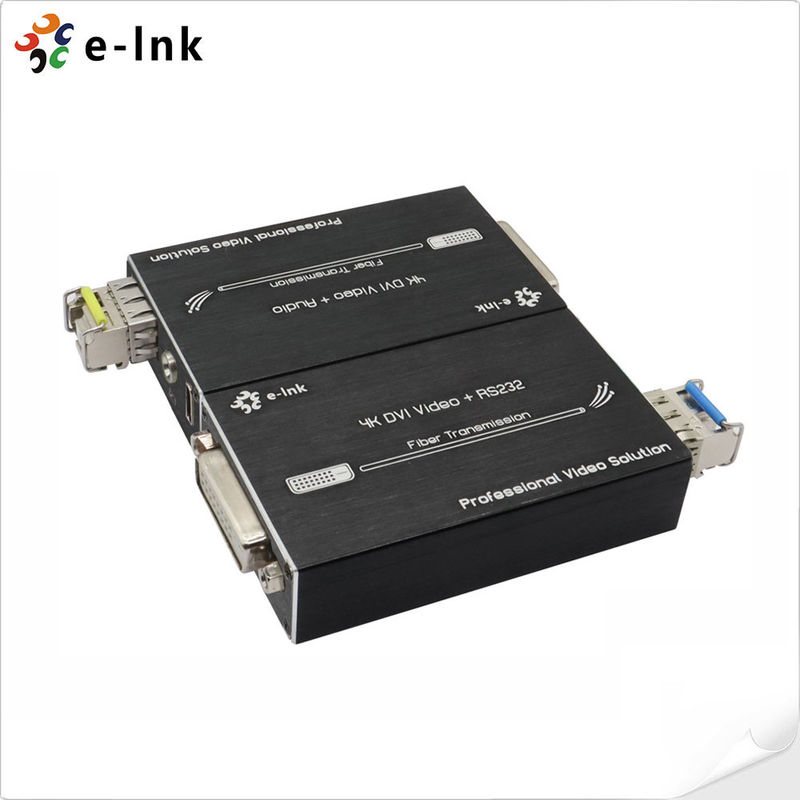

Mini 4K DVI Fiber Optic Extender with Audio Up to 80km Transmission Range
Overview
The Mini 4K DVI Fiber Optic Extender is designed for long-distance transmission of
uncompressed DVI video and stereo audio signals over optical fiber. Supporting resolutions
up to 4K×2K@60Hz with YUV 4:2:0, it ensures zero-latency and lossless performance for
professional AV applications. With a compact form factor and support for distances up to 80km
over single-mode fiber, it is ideal for large-scale displays, control rooms, conference systems,
and home theaters. This extender features HDCP compliance, plug-and-play setup, and robust
EMI/RFI resistance for stable, interference-free signal delivery.
Features
Supports uncompressed 4K×2K@60Hz DVI video transmission over fiber
Transmits DVI and stereo audio signals up to 80km (single-mode)
Compliant with DVI 1.0 and HDCP standards
Supports 3.5mm external stereo audio input/output
Plug-and-play with EDID support and zero configuration
EMI/RFI resistant for stable signal transmission
Compact mini form factor for easy installation
Data bandwidth up to 10.2Gbps
Low power consumption (<5W), powered by USB-C
Technical Indexes
|
Type of Extender
|
Fiber Transmitter for DVI signal over Optical Fiber Cable
|
|
Input Signals
|
DVI
|
|
Connector
|
DVI-D
|
|
Signal Support
|
DVI 1.0 format standard and HDCP compliant
|
|
Video Support
|
Up to 720P/960P/1080p@60Hz, 4K*2K@60Hz
|
|
Audio Support
|
Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
|
|
Chroma Subsampling
|
Max 3840*2160@60Hz (4:2:0)
Max 3840*2160@30Hz (4:4:4, 4:2:2)
|
|
EDID
|
Bi-Directional (Forward + Backward) Transmission:
Support Dynamic EDID, Plug & Play, no need to learn
Single-Directional (Forward) Transmission:
Support EDID learning manually
|
|
Audio Interface
|
3.5MM external stereo audio
|
|
Fiber Connector
|
SFP/LC
|
|
Bandwidth
|
10.2Gbps
|
|
Transmission Distance
|
300m (Over OM3 Fiber)
|
|
Up to 80km (Over Single-mode Fiber)
|
|
Operating Temperature
|
-10 ~ + 50°C
|
|
Storage Temperature
|
-20 ~ + 80°C
|
|
Humidity
|
5% to 90% RH (non-condensing)
|
|
MTBF
|
100,000 hours
|
|
Dimension (WxDxH)
|
2.87 x 1.73 x 0.69in (73x44x17mm)
|
|
Weight
|
60g / 0.13 lb
|
|
Power Supply
|
5V DC (USB-C)
|
|
Power dissipation
|
<5W
|
|
Safety Approvals
|
CE, FCC, Rohs
|
Ordering Information
|
Model
|
Description
|
|
|
LNK-MDA4K-MM
|
Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
|
|
LNK-MDA4K-S20
|
Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
|
|
LNK-MDA4K-S40
|
Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
|
|
LNK-MDA4K-S80
|
Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
|

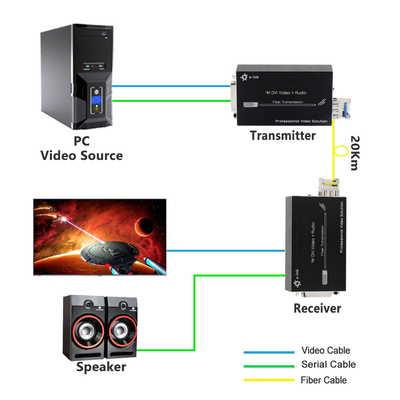

Application
Panel Information
